Four-unit residential addition with fire sprinklers, California

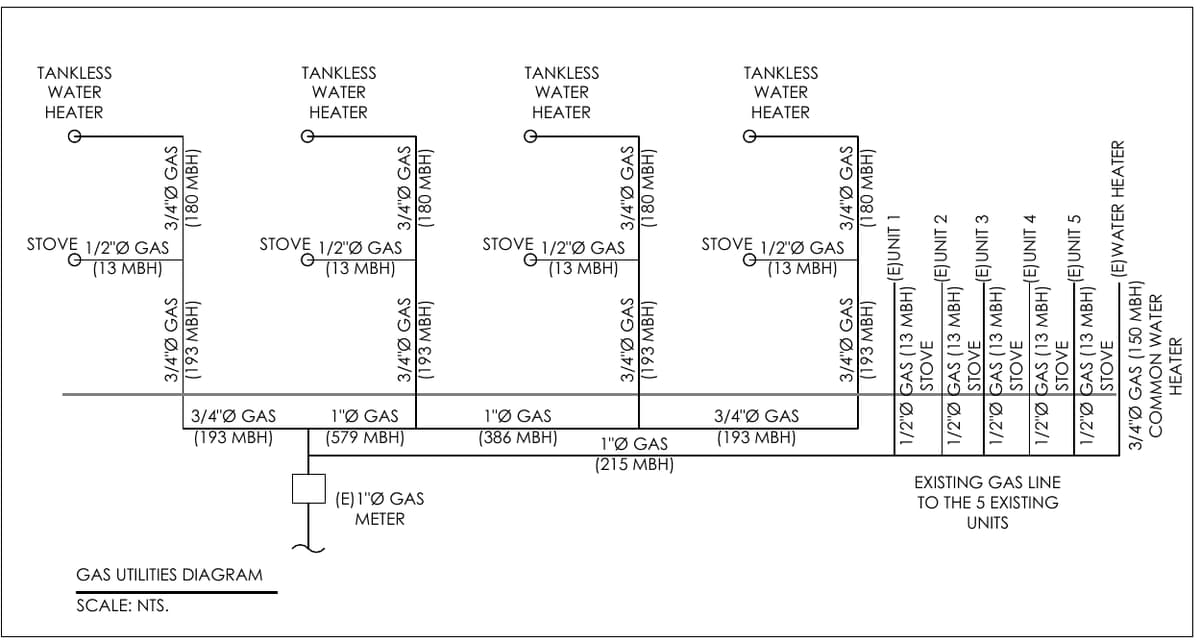

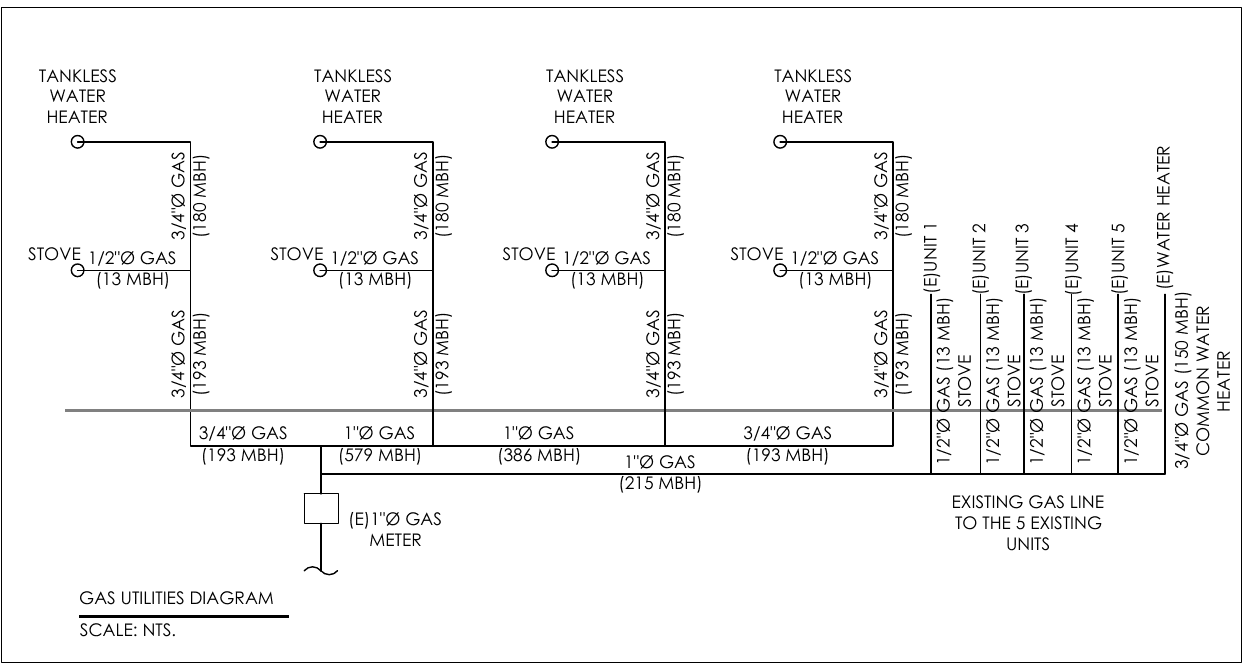

Four new residential units added to a property that already has five units. The design covers heating and cooling, ventilation, water supply, sanitary drainage, gas piping and residential fire sprinklers, including California Title 24 kitchen ventilation requirements.

MEP design and construction drawings.

• Ventilation to CMC 2025 Equation 405.2: 18 CFM for the 320 ft² units and 29 CFM for the 456 ft² units.

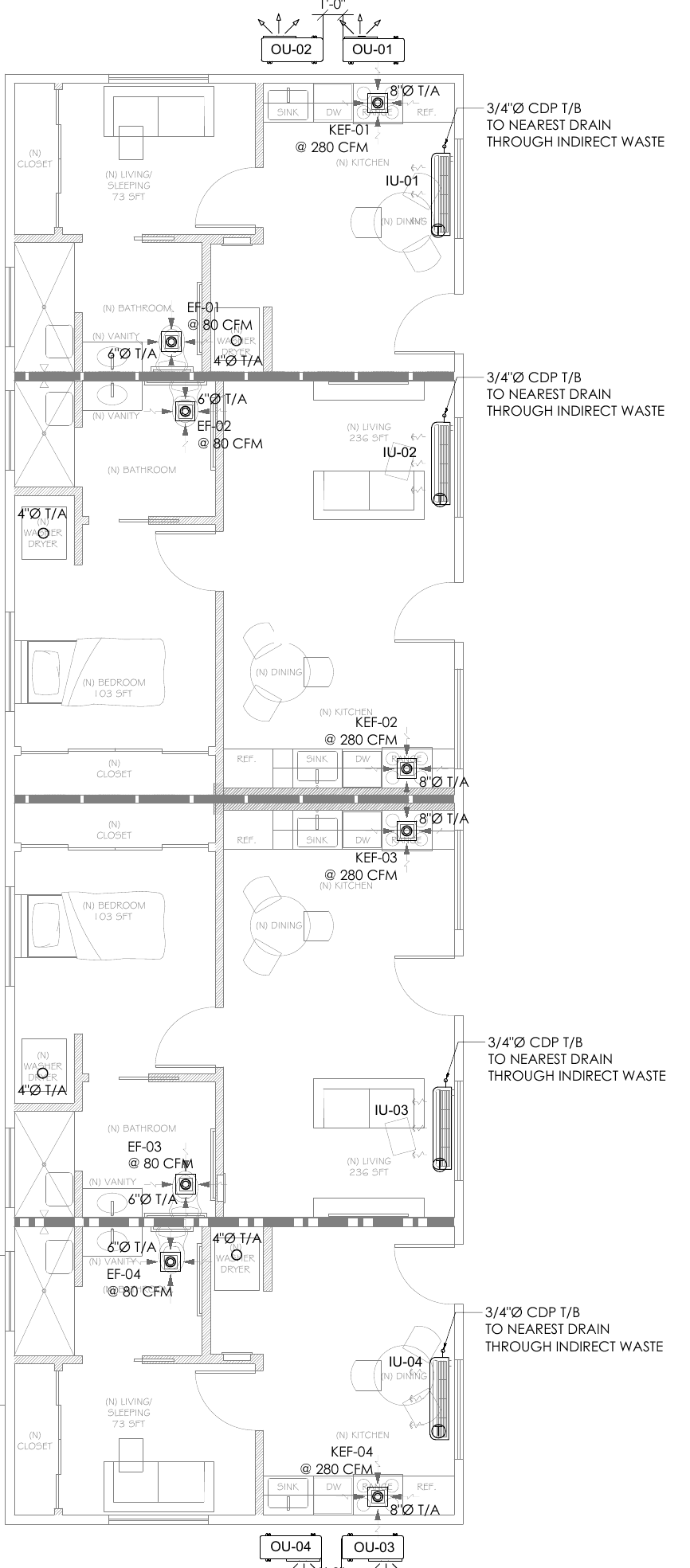

• Ductless heat pumps in each unit, with kitchen hoods at 280 CFM to CEnC 2022 Table 150.0-G.

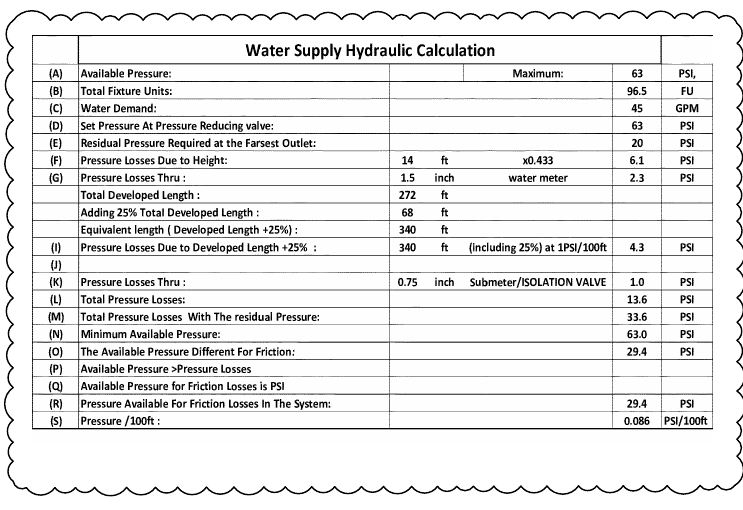

• Water supply hydraulic calculation: 96.5 fixture units and 45 GPM demand, leaving 29.4 psi for friction losses from 63 psi available.
• Sanitary drainage at 13 DFU per unit, 105 DFU in total with the existing units.

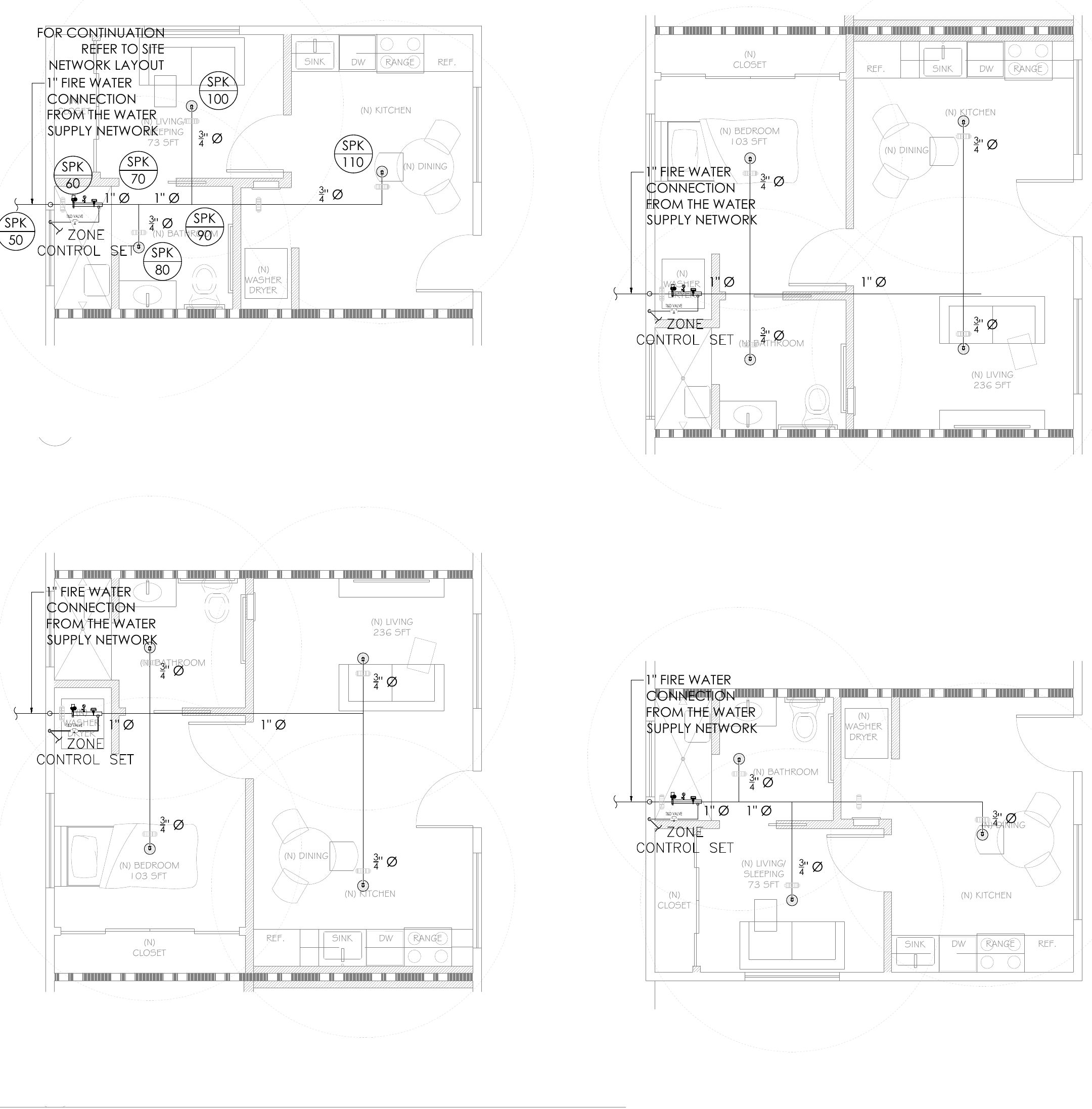

• NFPA 13D sprinkler layout for each unit, with zone control sets and freeze protection requirements.

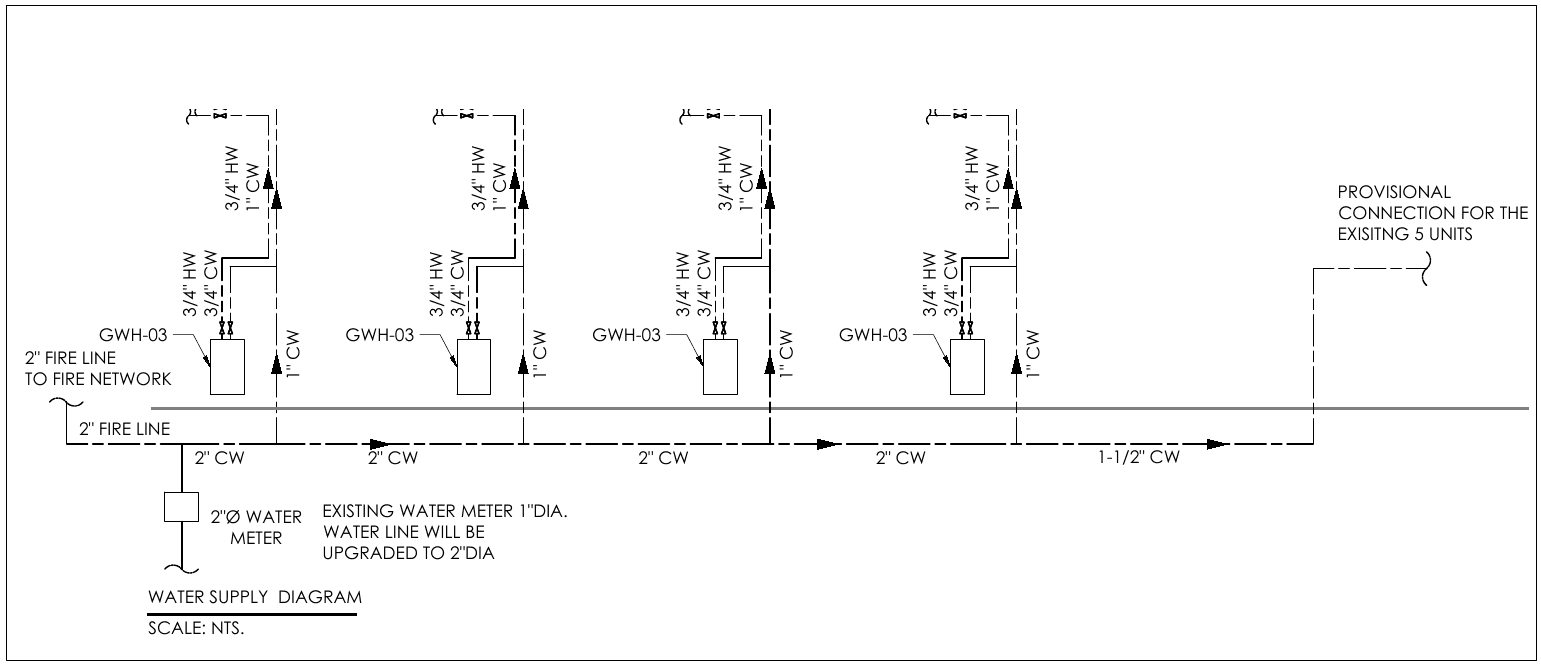

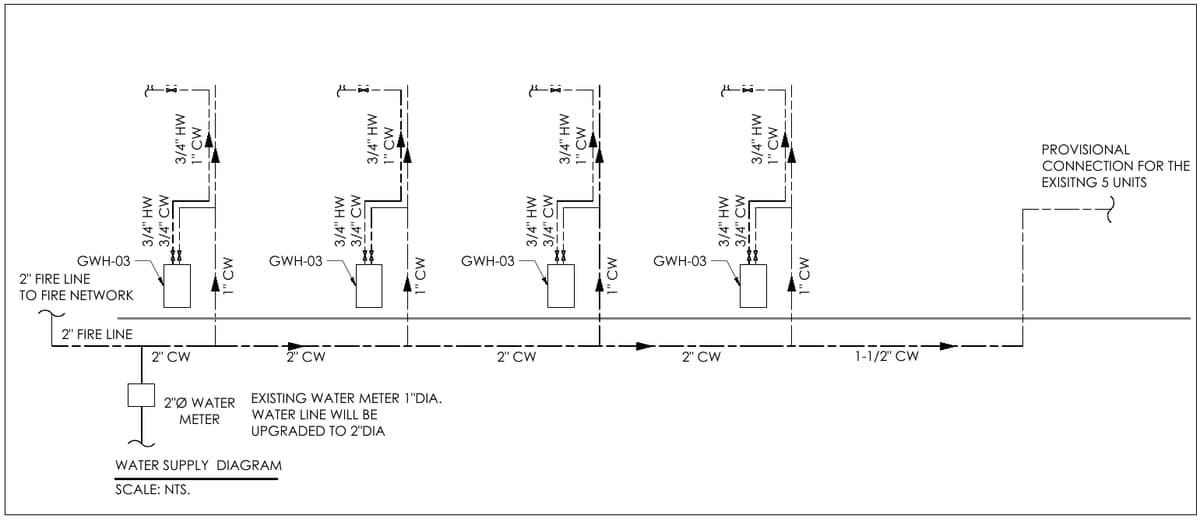

The existing 1-inch water meter served five units. With four new units and a 2-inch fire line for the sprinklers, the water service was upgraded to 2 inches, and the hydraulic calculation checks the 45 GPM demand against the 63 psi available.
